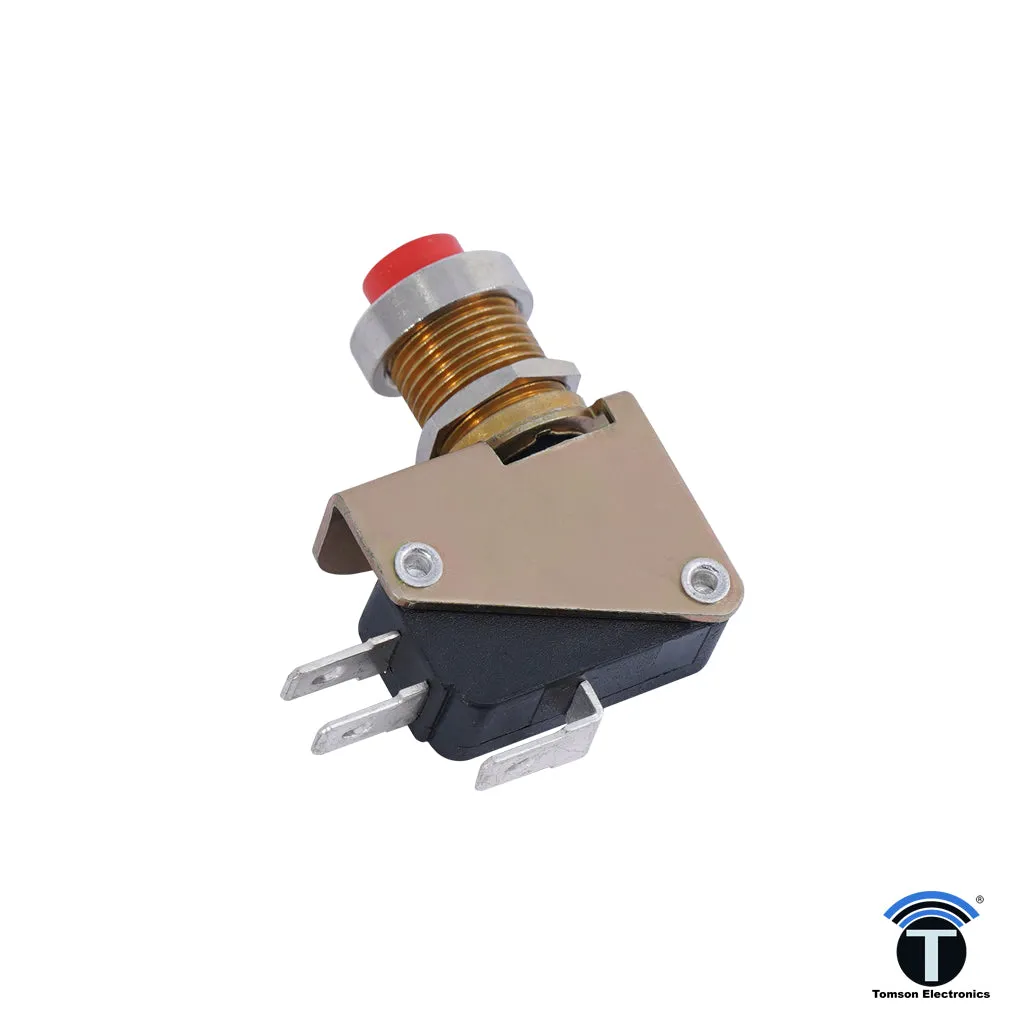

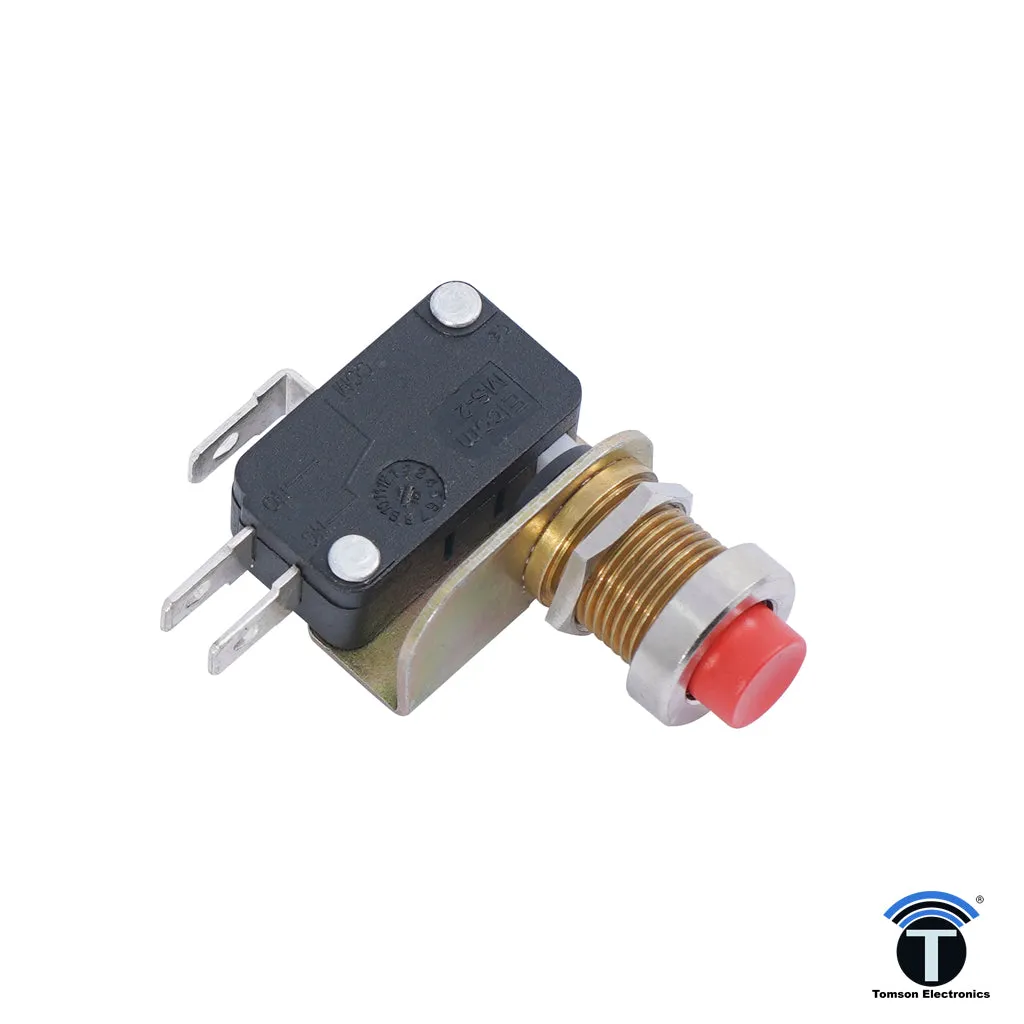

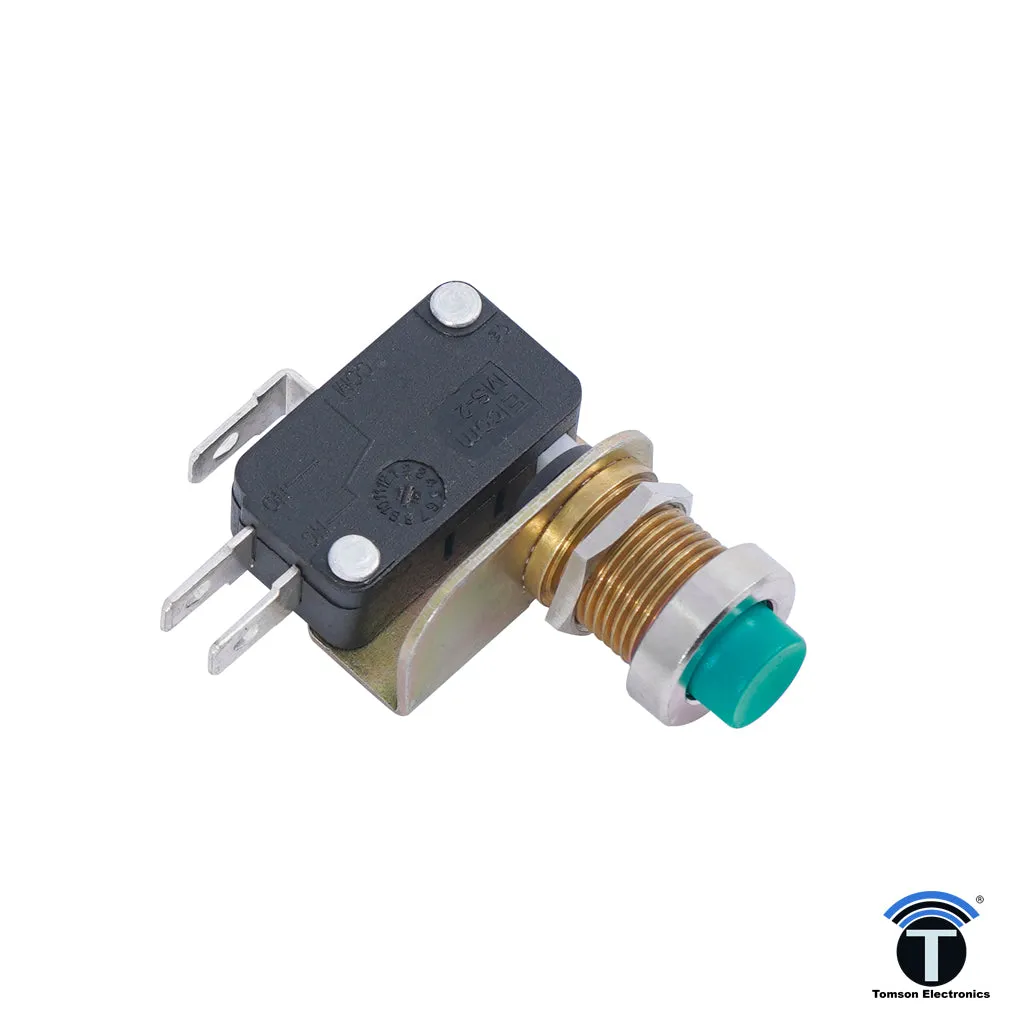

ELCOM MICRO SWITCH MS 222 B
- Contact Arrangement : NO / NC
- Contact & Voltage Rating : 6A, 250V AC .
Temp For With/Without Load : -20 deg. C to 85 deg. C.
Permissible Temp For Soldering : 270 deg. C for 5 sec. max.
Terminals : Solder - type / Snap-on 4.80
Insulation Resistance : 100 M Ohms at 500 VDC
H. V. Breakdown Test: 1 KVAC For 1 Minute.
Electrical Life : 1,00,000 Cycles
Current Carrying Parts : Terminals - Brass, Tin plated
Contact Resistance : 10 m Ohms
Colours Available For Actuator : Red Green
Switch Type : Momentary
Mechanical Life : 1,00,000 Cycles
